ULTIMA 5 Insulated Spandrel Panels

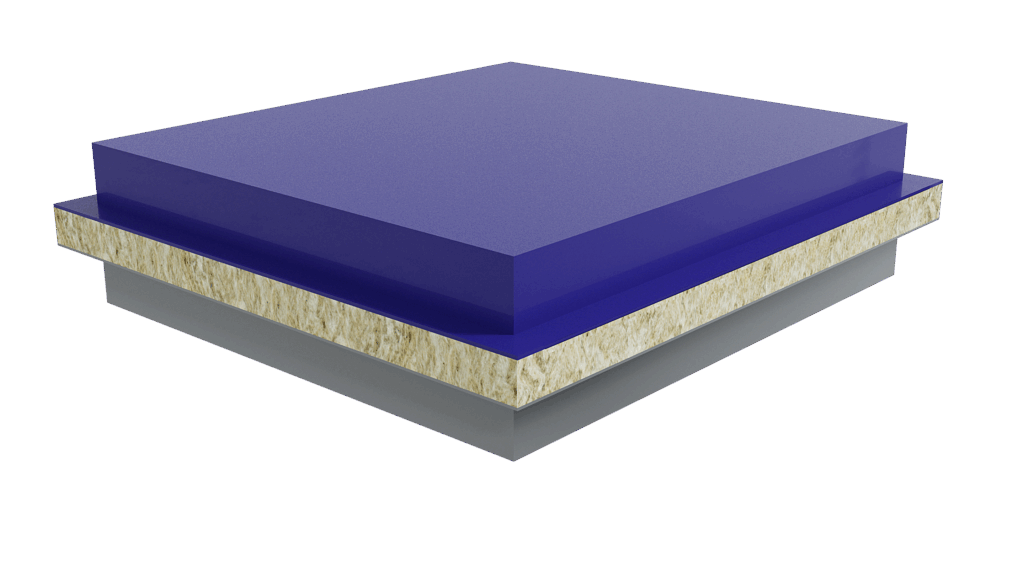

Available in either A1 or A2-s1,d0 options, the ULTIMA 5 is constructed to achieve fire compliance and structural performance plus offer designers the tools they need to meet specific project requirements. Adopting a stepped tray to the outer and inner allows for increased amounts of insulation to be used to improve the panels thermal performance whilst maintaining the desired glazing edge thickness.

To achieve an A1 classification, an outer anodised tray is used, mechanically fixed to an inner aluminium tray. The core is filled with high density mineral wool insulation and the two aluminium skins are separated by a perimeter thermal break.

An A2-s1,d0 rated ULTIMA 5 panel offers a powder coated outer aluminium tray and a powder coated or mill finished aluminium inner tray. The outer and inner trays are vacuum bonded to a FABROCK Insulation core and an ULTIMA A1 hard edge can be used to strengthen the perimeter of the panel.
