UNITY PS Interlocking Plank & Soffit System

A non-combustible interlocking pressed plank which can be used as either a cladding panel or soffit system.

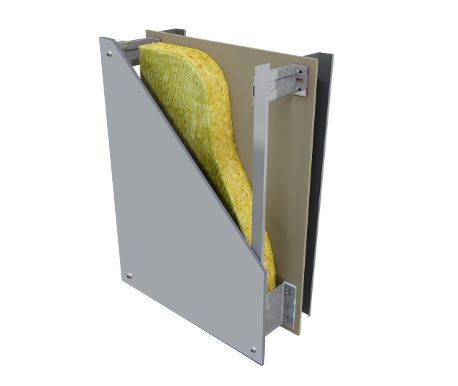

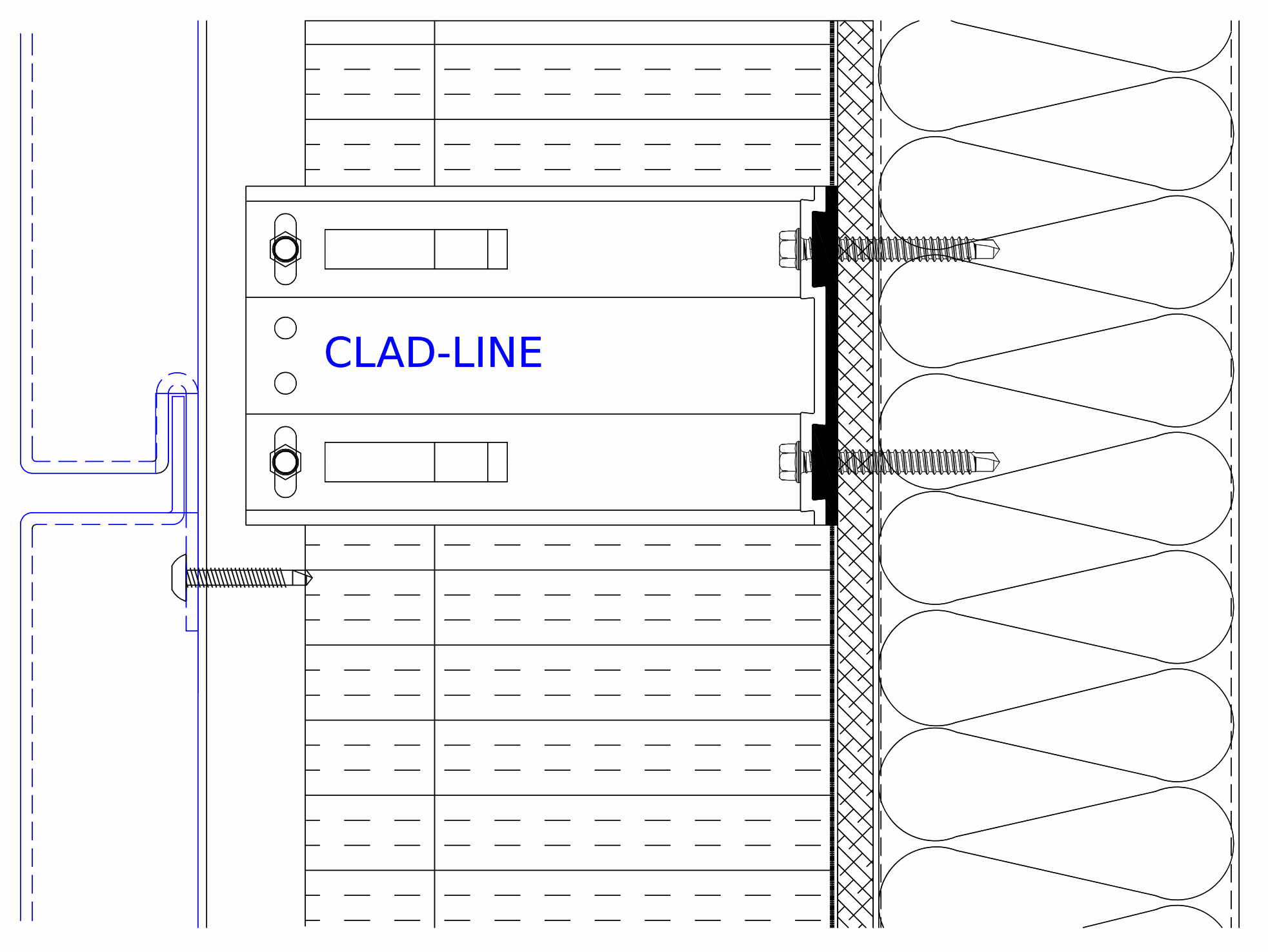

UNITY PS offers an easy to install secret fixed system for vertical face cladding or horizontal soffits. The versatile pressed plank can be supported by the CLAD-LINE CL1, F2F framing or the CL1-S soffit system. Available in anodised or powder coated aluminium, the UNITY PS system has been rigorously tested to verify both fire and structural performance.

Product Features

DUMMY TEXT
Reaction to fire performance
Anodised aluminium – A1 classification to EN13501-1
Pre-coated aluminium – A1 classification to EN13501-1
Powder coated aluminium – A2- s1,d0 classification to EN13501-1
Superior reaction to fire testing of powder coated panels
Powder coated panels tested fixed back to aluminium rails with horizontal and vertical joints, the appropriate ventilation space and a mineral wool substrate. All colours covered by the test’s Field of Application
Impact resistance
Soft & hard body impacts fully tested to CWCT TN75/76 Standards
Wind resistance
Fully tested to CWCT standards for serviceability and safety
Dynamic water resistance
Fully tested to CWCT standards
Colour options
High resistance to UV
Strong and durable
Ease of installation
No visible fixings
